Description

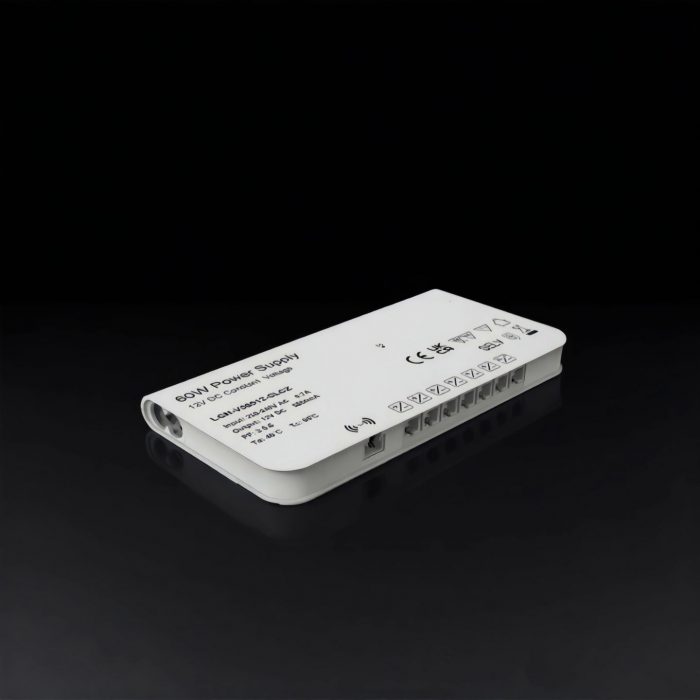

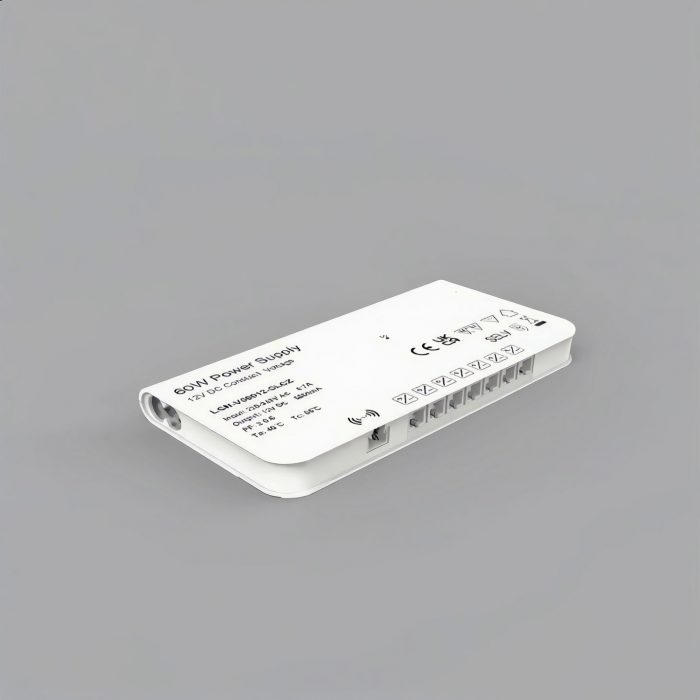

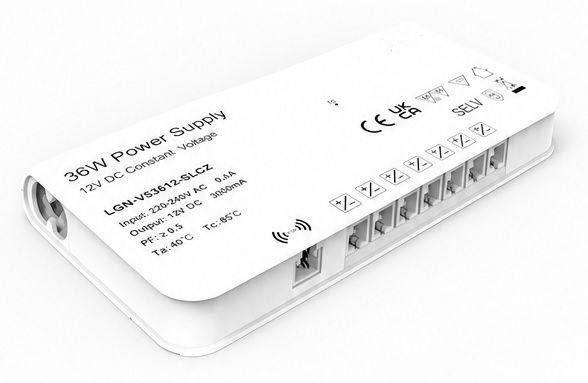

LED CABINET LIGHT POWER SUPPLY
Designed with an ultra-slim profile and multiple output ports, this LED cabinet power supply delivers stable constant voltage performance for cabinet, wardrobe, and drawer lighting systems. Featuring overload, over-voltage, and short-circuit protection, it ensures safe, reliable, and easy installation.
1. PRODUCT OVERVIEW
This LED cabinet light power supply is a high-performance constant voltage driver, specially designed for cabinet lights and drawer sensor lights. It features ultra-thin design, stable output, multiple power options, and multiple protection functions to ensure safe and reliable operation.
Suitable for cabinet lighting, drawer sensor lights, wardrobe lights, under-cabinet lights, showcase lights, and other indoor lighting applications.
2. PRODUCT FEATURES
Ultra-thin design, saving installation space- Constant voltage output, stable and reliable
- Multiple power options: 15W, 24W, 40W, 60W, 100W
- Multiple protection: over-current, over-voltage, over-load, over-temperature, short-circuit protection
- High efficiency and low heat, long service life
- Safe, reliable and energy-efficient
- Easy installation with multiple output ports
3. TECHNICAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Product Name | LED Cabinet Light Power Supply |
| Model | LGN-V Series |
| Input Voltage | 220-240V~ 50/60Hz 0.7A |
| Output Voltage | 12V DC (Constant Voltage) |
| Power Options | 15W / 24W / 40W / 60W / 100W |
| Output Current | 1.25A / 2A / 3.33A / 5A / 8.3A |
| Power Factor | PF > 0.5 |
| Efficiency | ≥85% |
| Protection | Over-current / Over-voltage / Over-load / Over-temperature / Short-circuit Protection |
| Operating Temperature | -10°C ~ +40°C |
| Max. Case Temperature | 85°C |

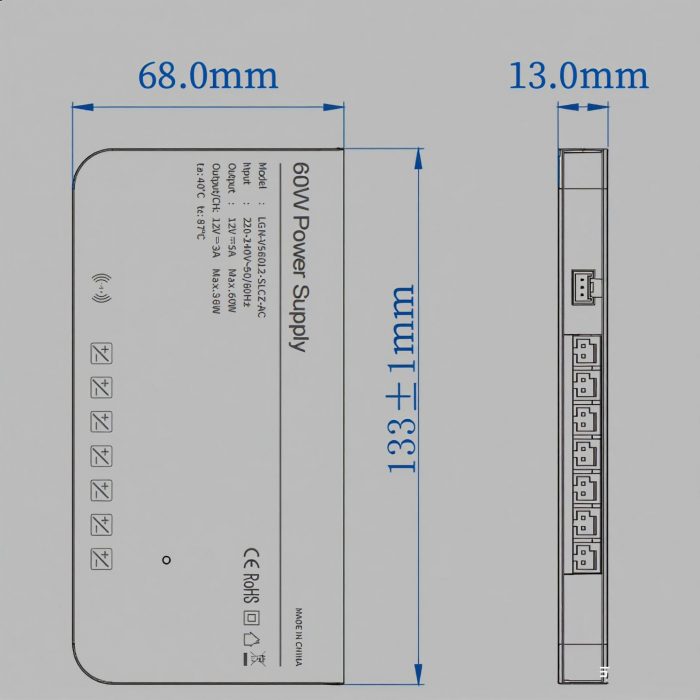

| Dimensions (L*W*H) | 133*68*13 mm |
| Certification | CE, RoHS, CCC |
| Output Ports | 1 Master Port + 7 Extension Ports |
| Application | Cabinet Light, Drawer Sensor Light, Wardrobe Light, Under-cabinet Light, Showcase Light, etc. |
4. APPLICATIONS
Cabinet lighting systems
Drawer sensor lights
Wardrobe lighting
Under-cabinet lighting
Showcase lighting
Furniture lighting
Residential lighting
Commercial lighting
Retail display lighting
DIY lighting projects
