Description

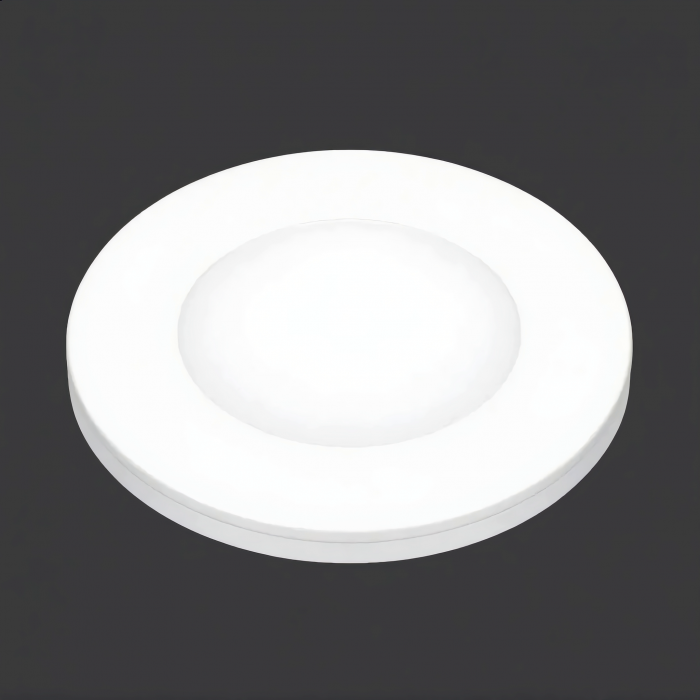

Magnetic LED Puck Light
Featuring an edge-lit light guide plate structure, the light delivers soft and uniform illumination by evenly diffusing LED light through the guide panel. The result is a “see the light, not the fixture” effect with no visible light dots or glare, creating a smooth and comfortable lighting experience. Its unique magnetic mounting design allows easy installation, convenient maintenance, and flexible DIY operation, making it ideal for cabinets, wardrobes, display showcases, and other interior lighting applications.

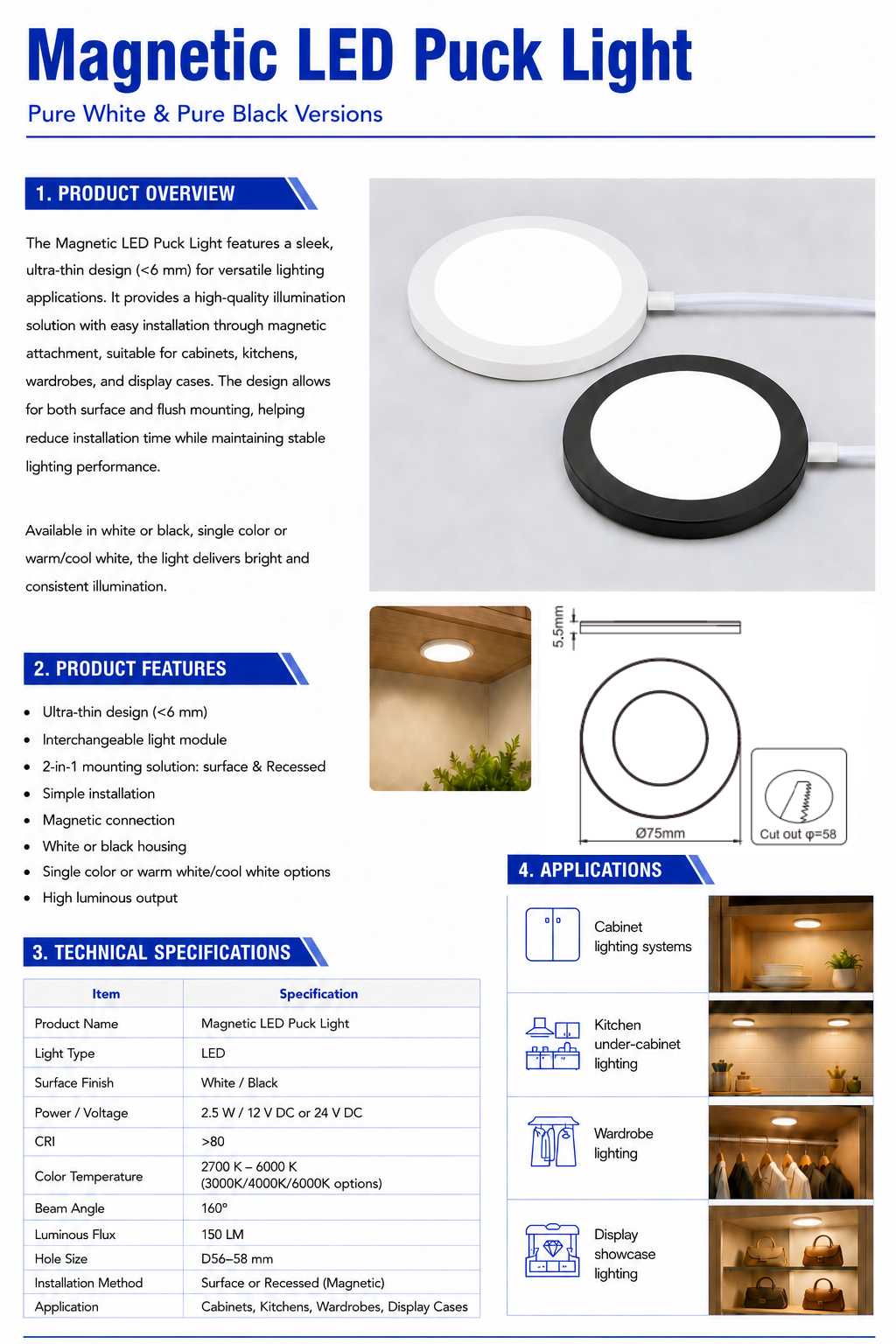

1. PRODUCT OVERVIEW
The Magnetic LED Puck Light is a low-profile lighting solution designed for cabinets, shelves and display cases. And this puck light combines ultra-thin design, smooth illumination and easy installation.
It offers uniform, flicker-free light with high color rendering, multiple color temperature options and dimmable compatibility. The built-in magnet allows quick attachment or removal without tools, ideal for surface mount or recessed installation.
Perfect for under-cabinet lighting, showcases, wardrobes, and accent lighting applications.

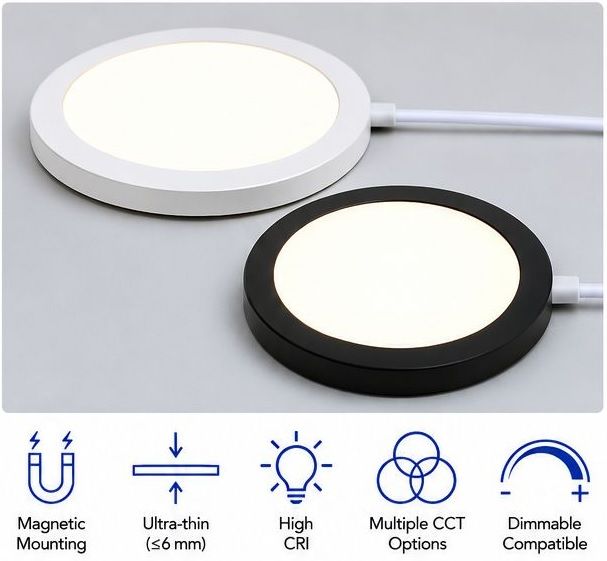

2. PRODUCT FEATURES

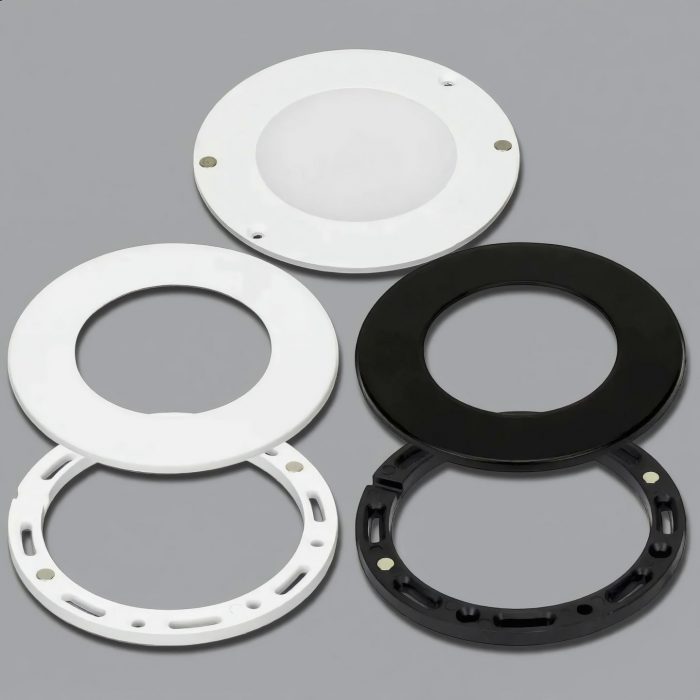

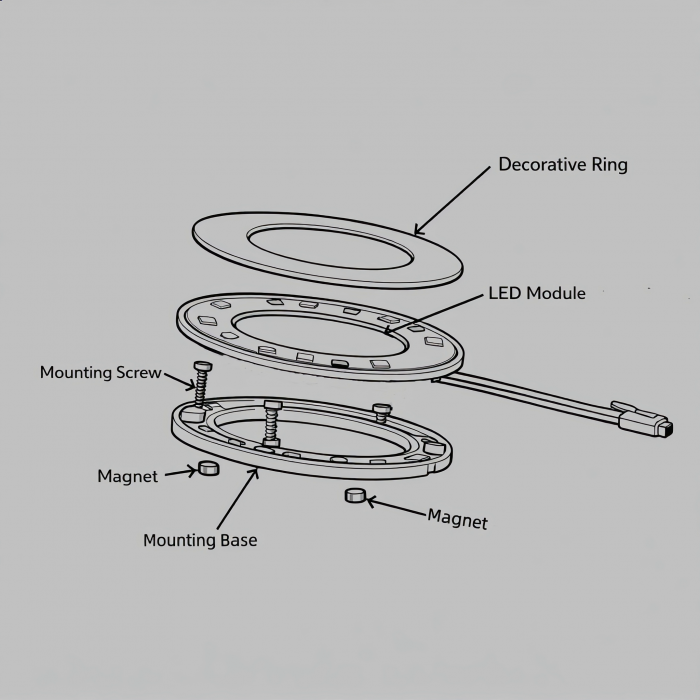

Ultra-thin design (≤6 mm) for a sleek, modern look- Built-in strong magnet for quick and secure installation (surface mount or recessed)
- Smooth and uniform illumination with no visible dots
- High CRI (Ra≥90) for true and natural colors
- Multiple color temperature: 2700K / 3000K / 4000K / 6000K
- Dimmable compatibility with leading drivers (12V / 24V DC systems)
- Low power consumption & long lifespan (up to 50,000 hours)

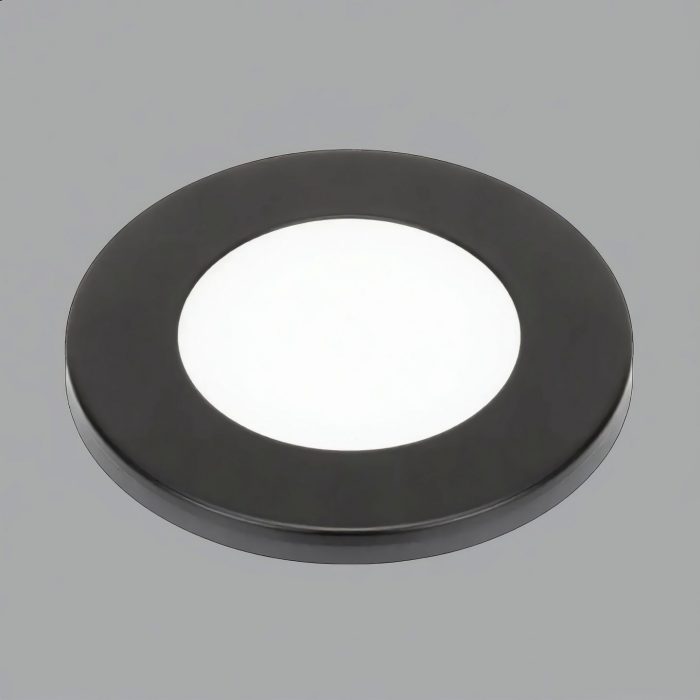

- Available in white or black housing for design flexibility
3. TECHNICAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Product Name | Magnetic LED Puck Light |
| Light Source | LED |
| Surface Finish | White / Black |
| Input Voltage | 12V DC / 24V DC |
| Power | 2.2W (typ.) |
| CRI | Ra ≥ 90 |
| Color Temperature | 2700K / 3000K / 4000K / 6000K |
| Luminous Flux | Up to 150 LM (typ.) |
| Beam Angle | 120° |

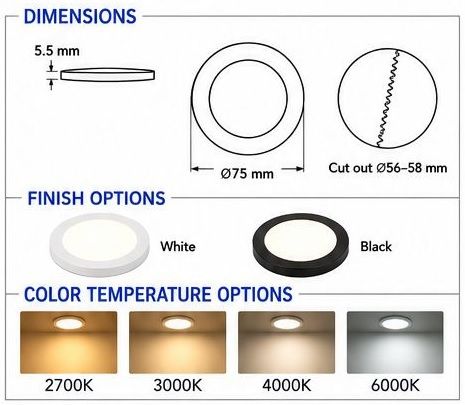

| Hole Size (Recessed) | Ø56 ~ 58 mm |
| Installation Method | Surface Mount / Recessed (Magnetic)C |
| Lifespan | 50,000 hours (L70) |
| Operating Temperature | -20°C ~ +40°C |
| Application | Cabinets, Kitchens, Wardrobes, Display Cases, Shelves |

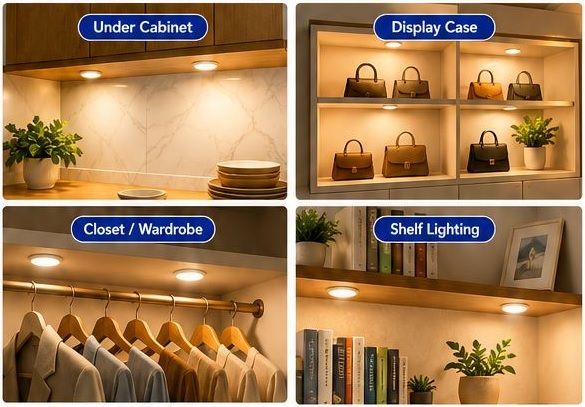

4. APPLICATIONS
