Detachable 10×10mm LED Profile

LED Shelf Light

Description

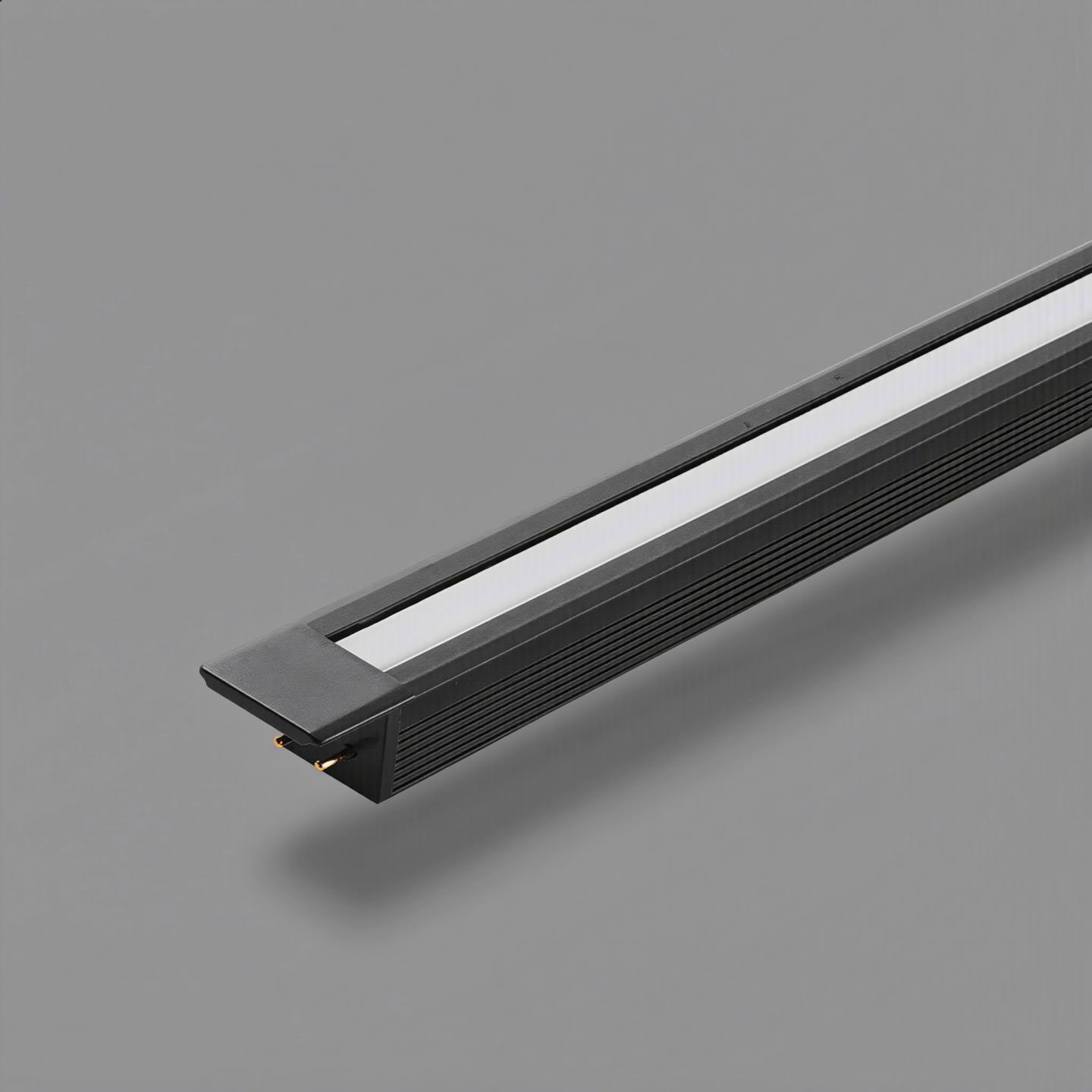

Recessed 10 × 10 mm LED shelf light designed for cabinets, wine cabinets, wardrobes, shelves and display furniture.

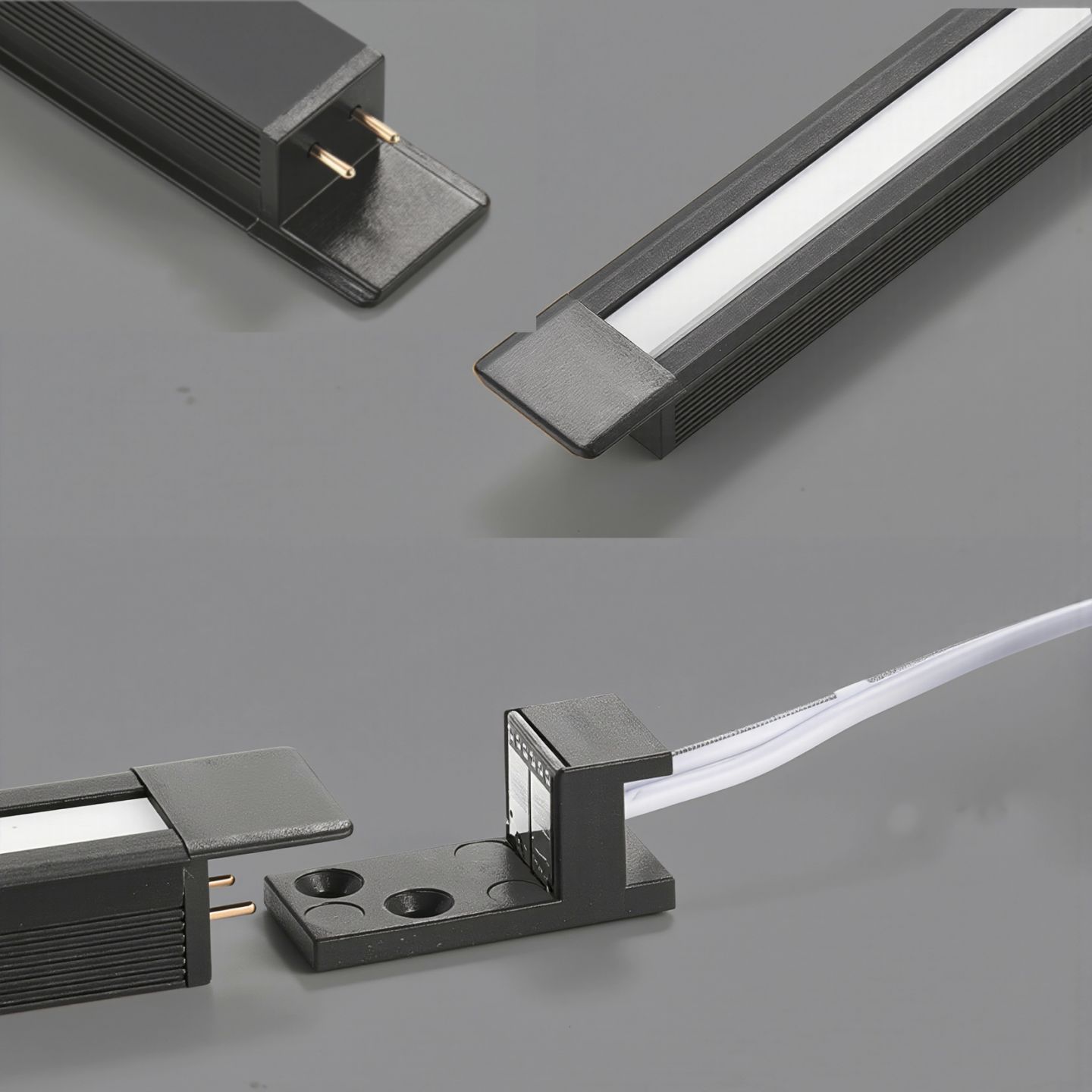

The detachable lamp-and-cable structure keeps installation clean: the powered base stays in the groove, and the light bar plugs in with a 2-pin connector. A compact 10 × 10 mm profile sits neatly in a routed shelf for a flush, seamless cabinet look.

Key Features

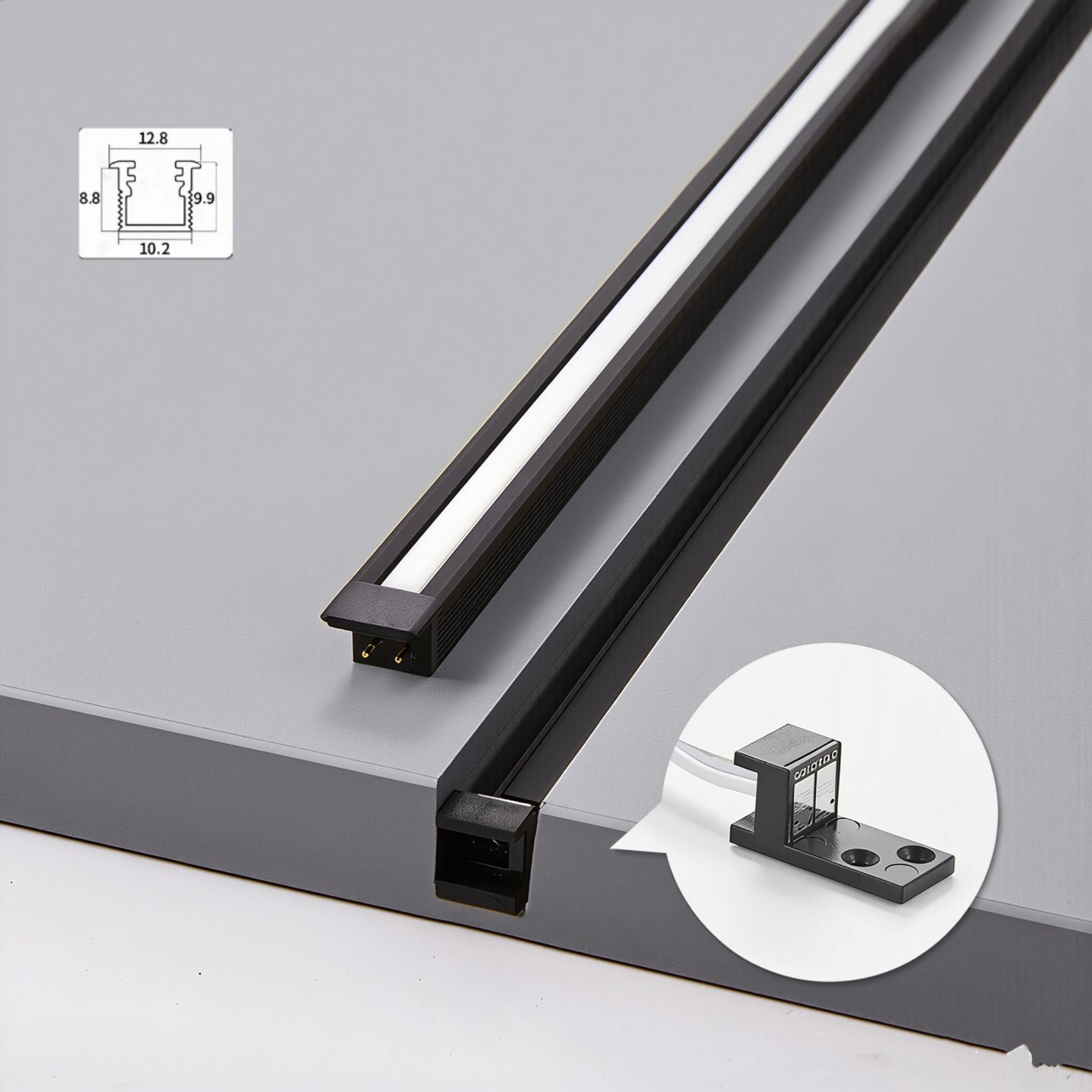

Detachable 10 × 10 mm aluminium profile, lamp and cable separated
Recessed / hidden installation for a clean cabinet finish
2-pin plug-in connection, no soldering
Opal diffuser for smooth, even illumination
12 V DC, 8 W/m

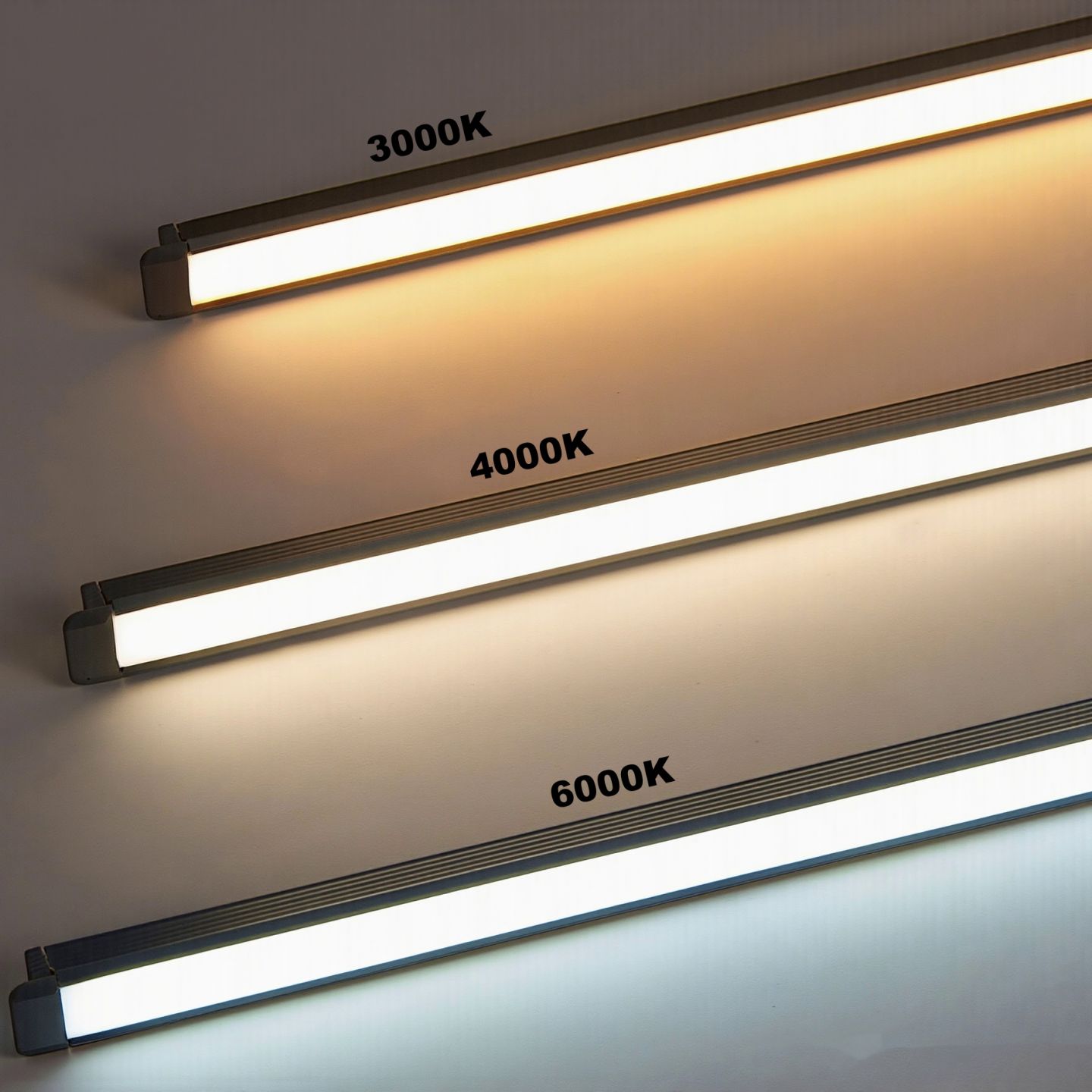

CCT: 3000K / 4000K / 6000K
Lengths: 400 / 500 / 600 / 700 / 800 / 900 / 1000 / 1100 / 1200 mm (custom length available)
Finish: black (iron grey optional)
Ideal for kitchens, wardrobes, wine cabinets and display furniture

Technical Specifications

Item	Specification
Product Name	Detachable 10×10mm LED Profile

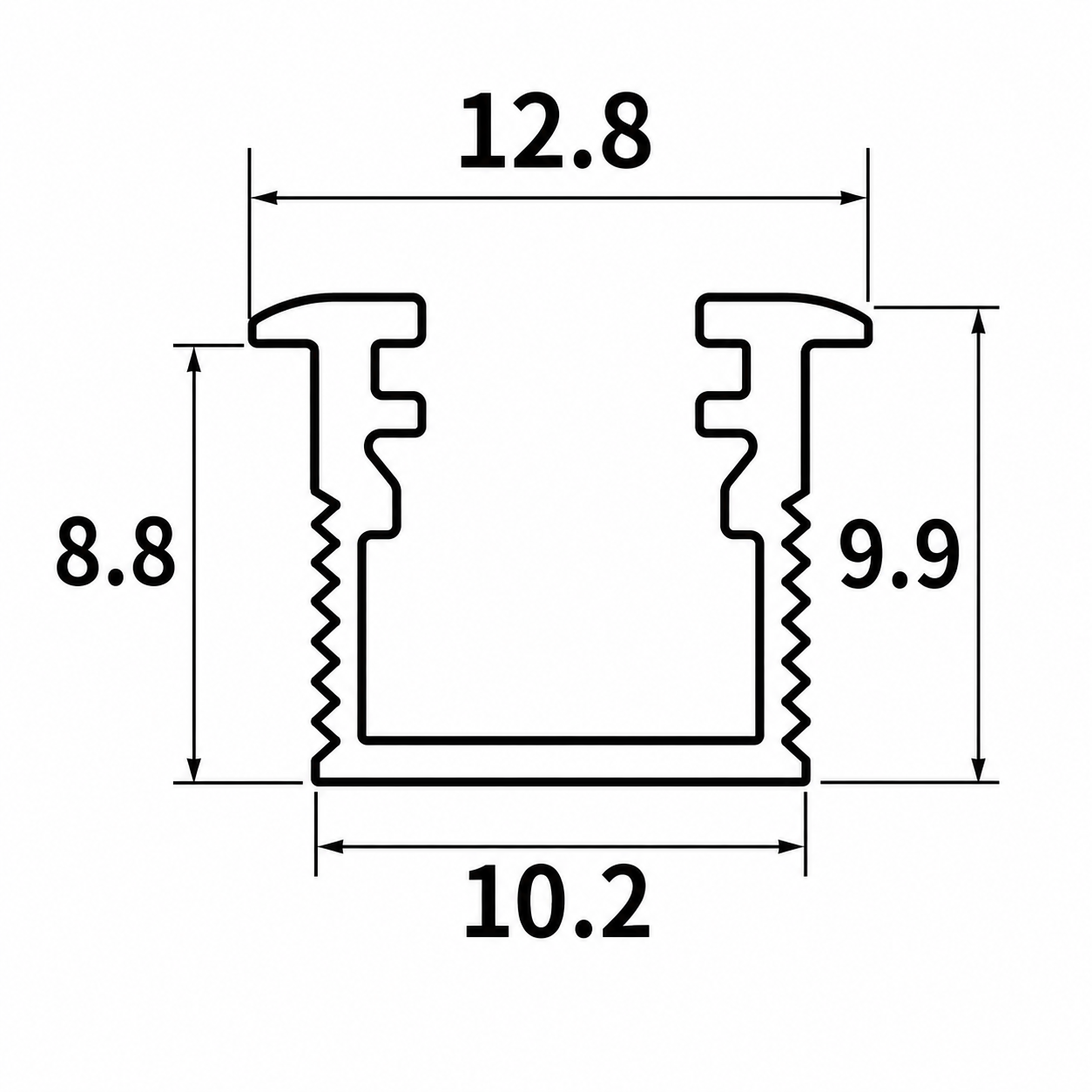

Profile Size	10 × 10 mm class (drawing: 12.8 mm × 9.9 mm ×10.2 mm)
Cut-out	11 × 11 mm
Housing / Diffuser	Aluminium + PC
Input Voltage	12 V DC
Power	8 W/m
Luminous Flux	1000 lm/m
Beam Angle	120°
Color Temperature	3000K / 4000K / 6000K
Connection	Detachable 2-pin base cable (order 1 base per lamp)
Standard Lengths	400–1200 mm
IP Rating	Indoor, not waterproof
Estimated Lifespan	35,000 hours
Compatible Drivers	12 V 24W / 36W / 60W / 100W (ordered separately)
