Description

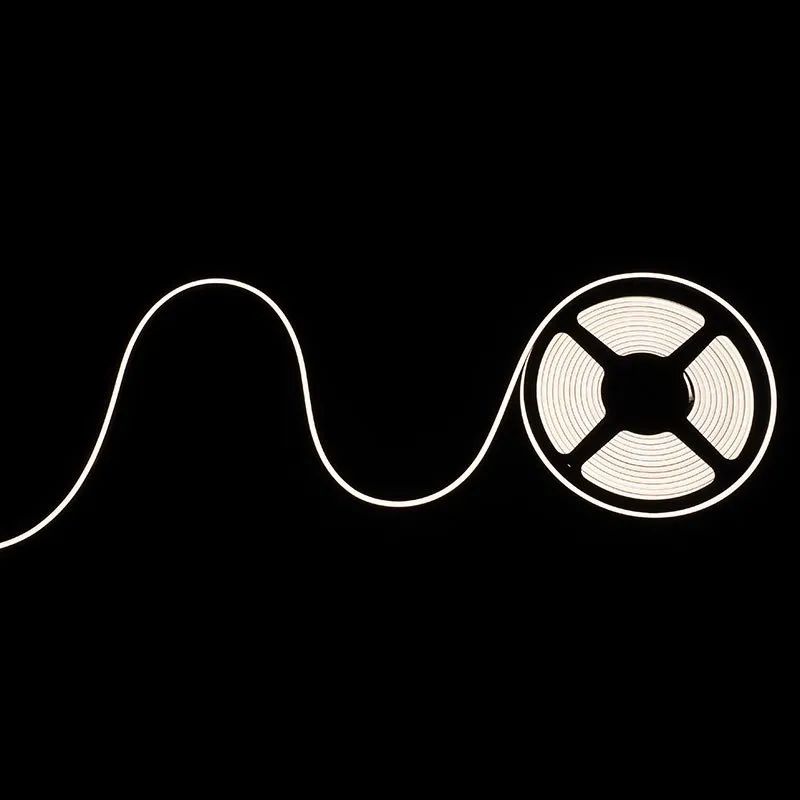

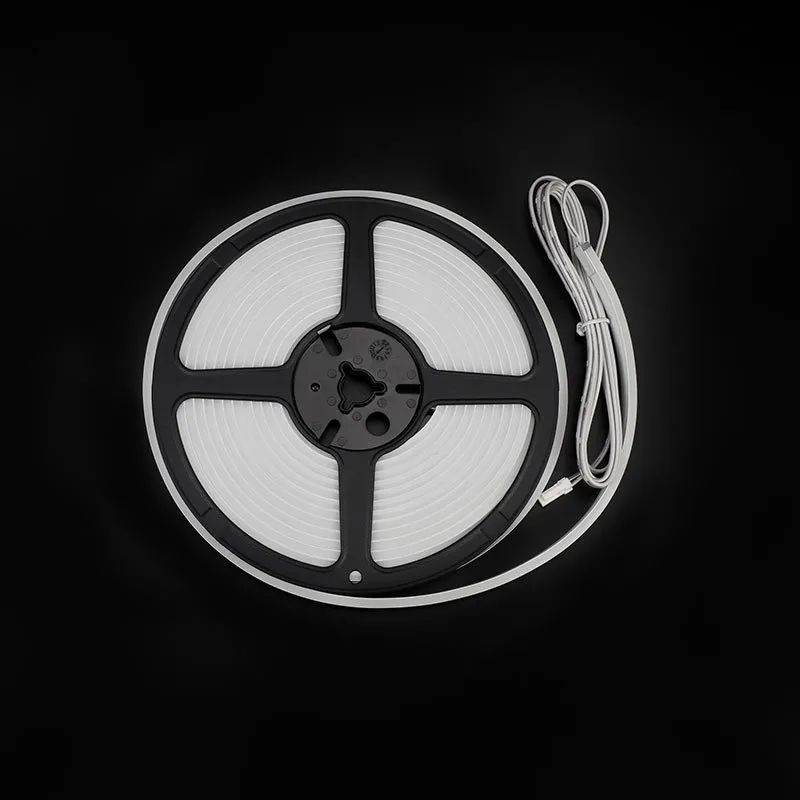

Ultra-slim side-view silicone LED neon strip designed for cabinets, bathroom vanities, wardrobes, shelves, display cases and architectural accents.
With a compact 4 × 8 mm profile and a 4 mm light-emitting surface, it delivers smooth, uniform and spot-free illumination while fitting neatly into narrow furniture details. The solder-free fast connector and Anywhere Cut design make installation quicker, cleaner and more flexible.
Key Features
- Ultra-compact 4 × 8 mm silicone neon profile
- 4 mm side-view light-emitting surface
- Solder-free fast connector for quick and easy installation
- Anywhere Cut design for flexible custom lengths
- Mini side-bending design with a bending radius of R > 30 mm
- Uniform, spot-free illumination
- 24 V DC input, 10 W power
- 250 lm ±10% luminous flux
- CRI > 90 for accurate colour rendering
- Dimmable for different cabinet-lighting requirements
- IP65 / IP67 protection for indoor and wet-area applications
- Ideal for cabinets, bathroom vanities, wardrobes, shelves, displays and cove lighting
Technical Specifications
| Item | Specification |
| Product Name | 0408 Solder-Free Side View LED Neon Strip Light |
| Model | TR-120WW5HY-0408 |
| Product Size | 04 (W) × 08 (H) mm |
| LED Type / Quantity | 2835 | 120 pcs/m |
| PCB Width | 5 mm |
| Input Voltage | 24 V DC |
| Power | 10 W |
| Luminous Flux | 250 lm ±10% |
| CRI | > 90 |
| Beam Angle | 120° |
| Connection | Solder-free fast connector |
| Cutting | Anywhere Cut |
| Dimming | Dimmable |
| IP Rating | IP65 / IP67 |
| Minimum Bending Radius | R > 30 mm |
| Estimated Lifespan | 30,000 hours |
| Operating Temperature | –20°C to +50°C |
| Storage Temperature | –30°C to +80°C |
Installation & Connection

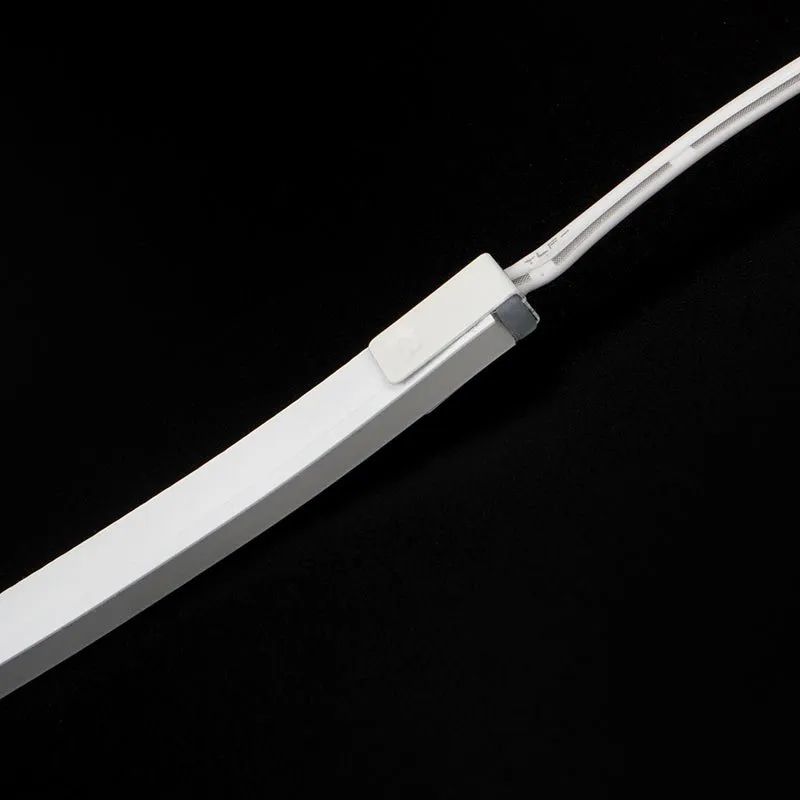

Solder-Free Connection
Cut the neon strip to the required length, insert it into the compatible 0408 solder-free connector and secure the connection. No soldering is required, helping reduce installation time and keep the wiring clean.

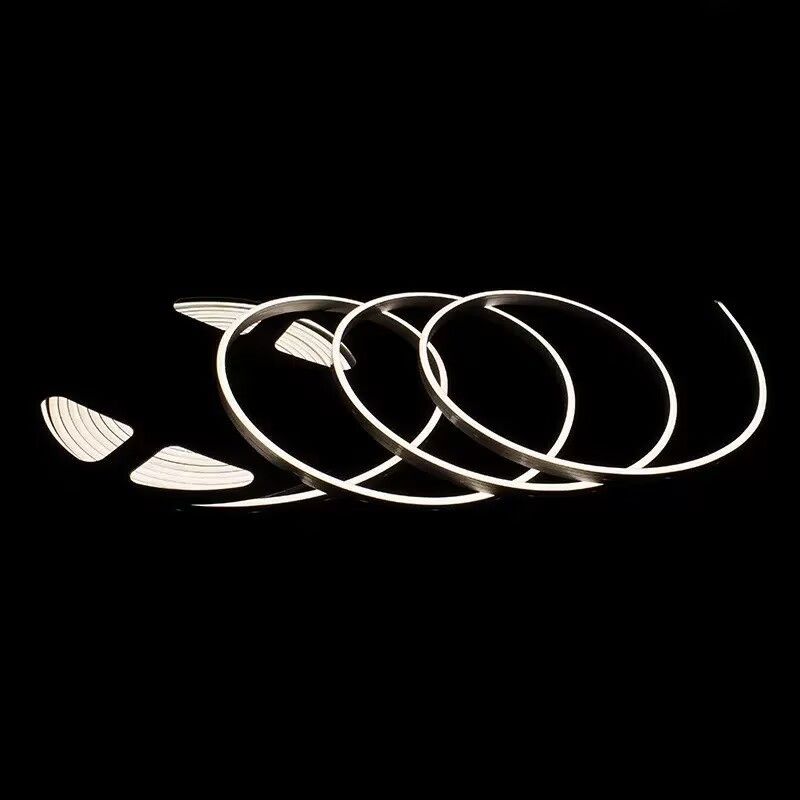

Side-Bending Installation
Install the strip with the light-emitting surface facing sideways. Keep the bending radius greater than 30 mm and avoid twisting, folding or sharply bending the strip.
Wet-Area Installation
For bathroom and other wet-area applications, ensure that connectors, end caps and seals are installed correctly to maintain the required IP65 / IP67 protection.
Applications
Suitable for cabinet lighting, bathroom vanities, wardrobes, shelves, display cases, architectural accents, signage outlines, pathways, landscape details and cove lighting.
